Titan 2 Kit – Large Remote Touchscreen System for Garmin GPSMAP® Series MFD
Unlock full touchscreen control of your Garmin GPSMAP® system with the rugged, high-performance Titan 2 Kit. Designed for maximum visibility, intuitive operation, and seamless integration, the Titan 2 is available in 18.5” and 24” screen sizes—perfect for demanding marine environments.
✅ Compatible With:
Garmin GPSMAP® 84xx and 86xx MFD Series
Garmin GPSMAP® 9xxx Chartplotters
Garmin GPSMAP® 95xx Black Box Systems
Garmin GPSMAP® 1653xsv
Full remote touchscreen functionality when connected via HDMI and USB.
📦 What’s Included (Both Models):

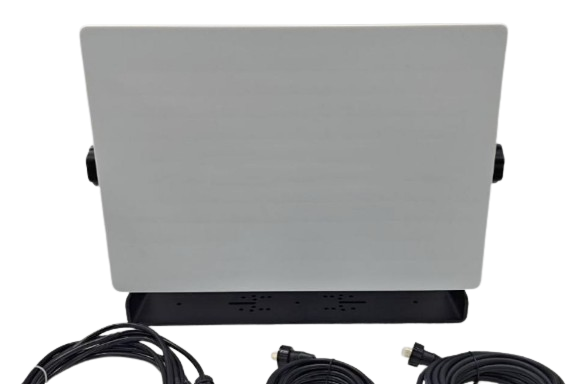

🔹 Titan 2 Touchscreen (18.5" or 24")
🔹 Bail Mount Bracket & Knobs
🔹 Screen Protector

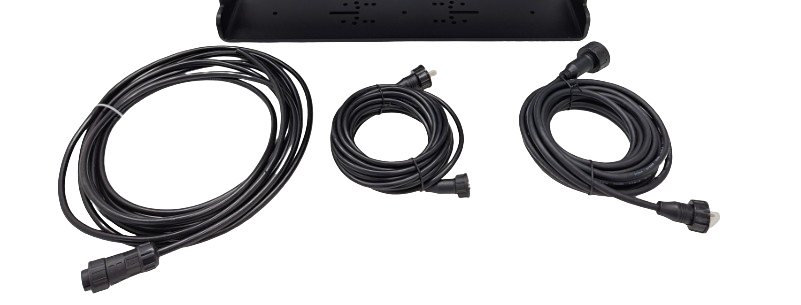

🔹 8m USB-OTG Cable
🔹 8m HDMI Cable
🔹 8m Power DC Cable
📊 System Specifications:

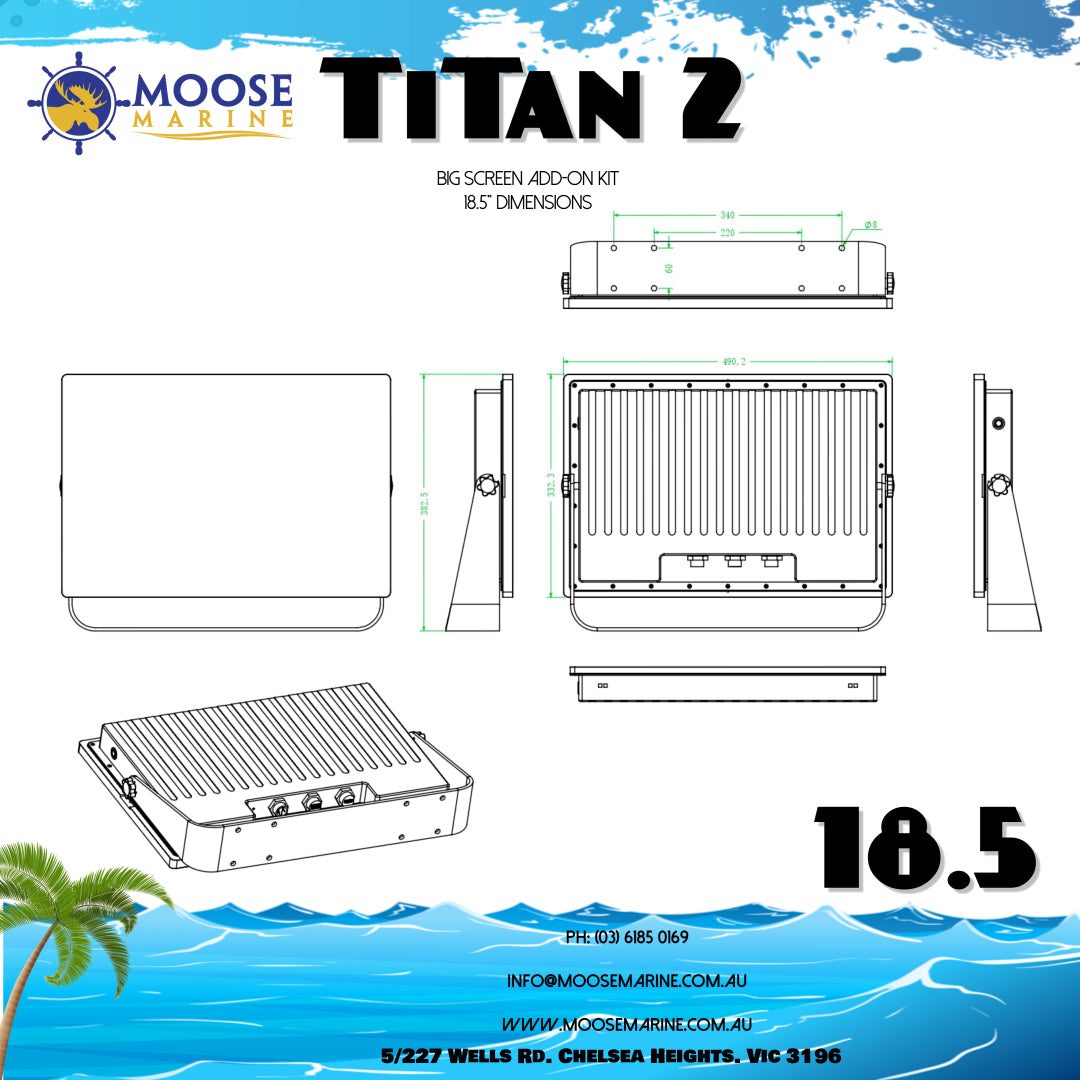

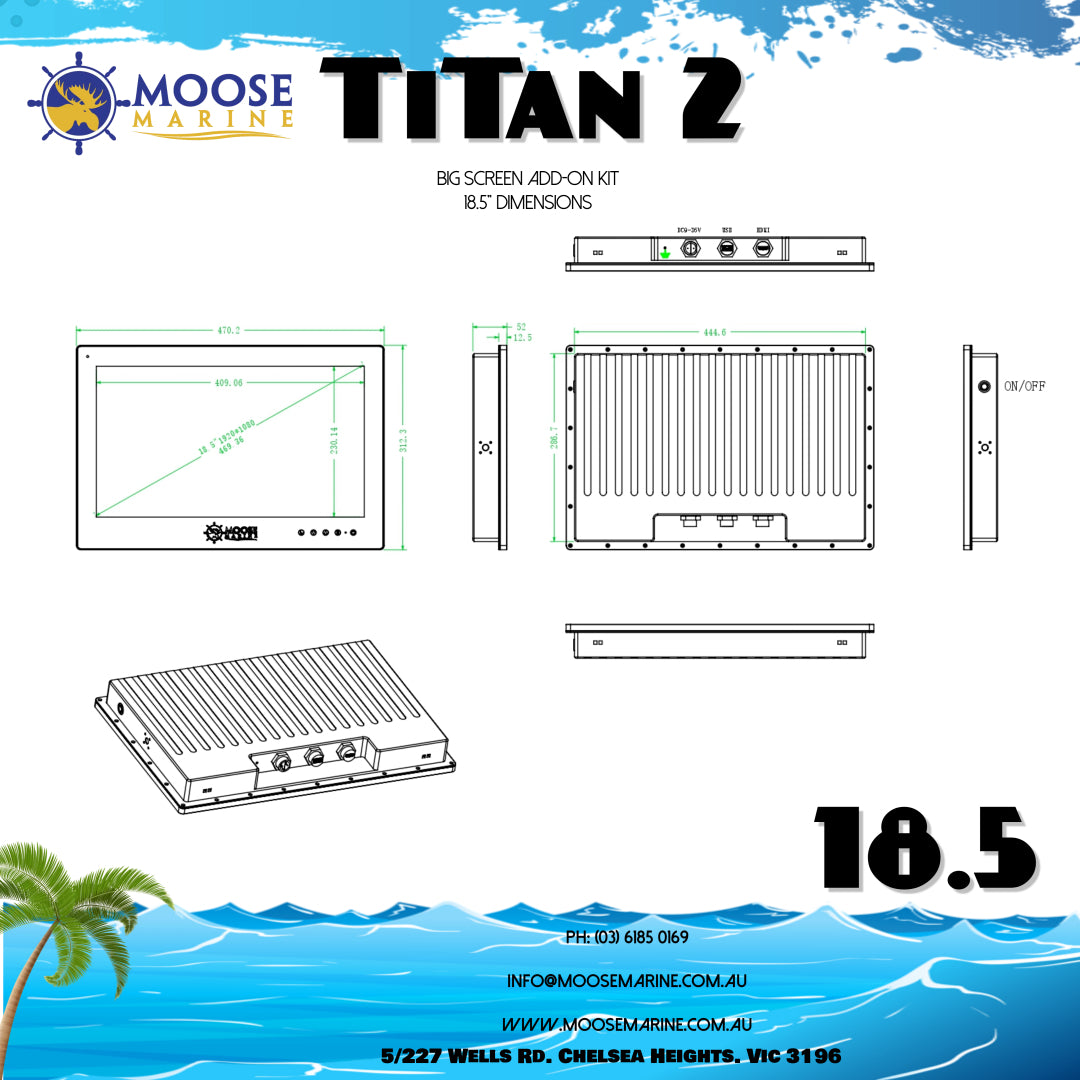

🔹 18.5" Model
Screen Size: 18.5"
Weight: 8 kg
Dimensions: 470.2mm x 312.3mm x 52mm
Touchscreen: 10-Point Capacitive
Resolution: 1920 x 1080 Full HD
Brightness: 1500 nits (sunlight readable)
Display: IPS Bonded Glass with Front Light Sensor

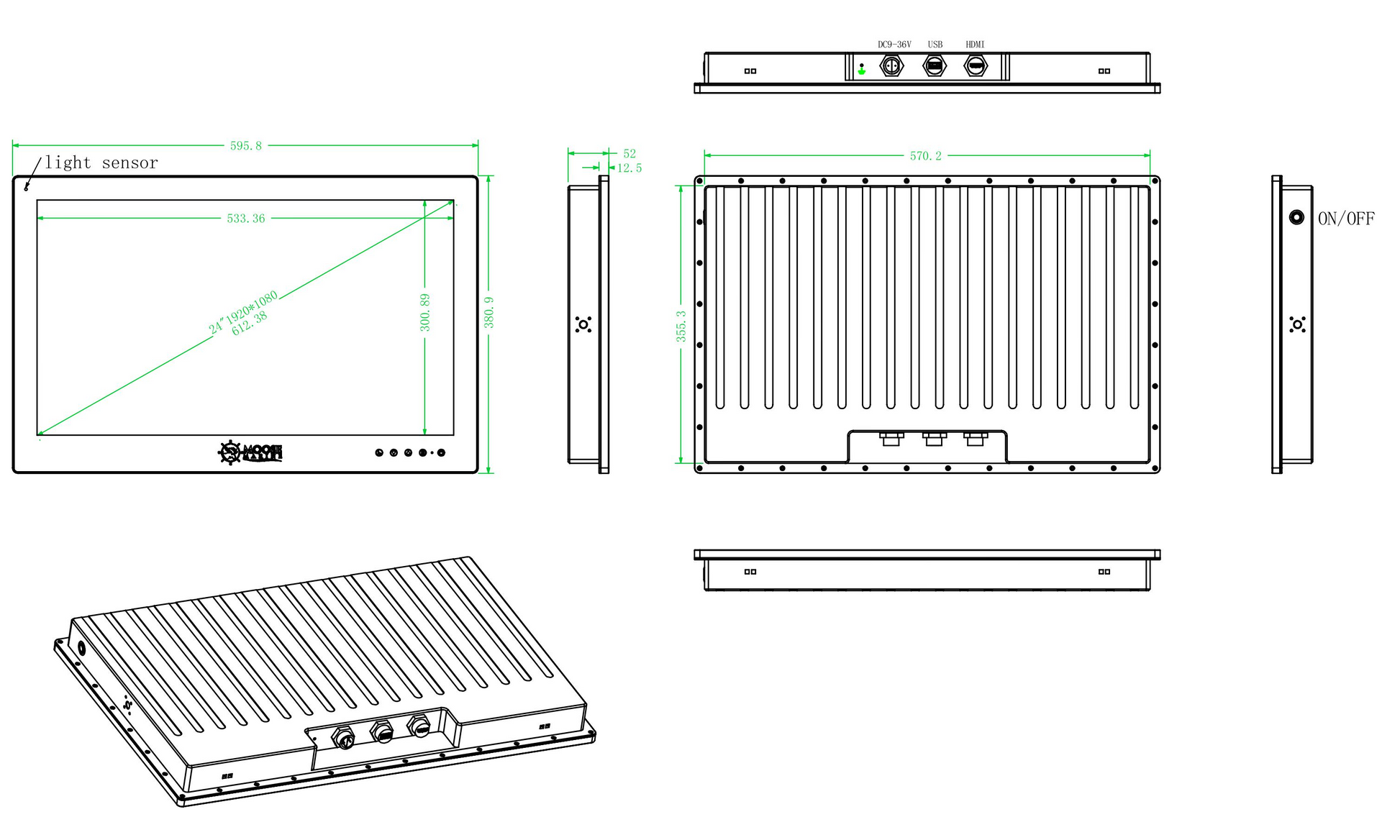

🔹 24" Model
Screen Size: 24"
Weight: 12 kg
Dimensions: 595.8mm x 380.9mm x 52mm
Touchscreen: 10-Point Capacitive
Resolution: 1920 x 1080 Full HD
Brightness: 1500 nits (sunlight readable)
Display: IPS Bonded Glass with Front Light Sensor
🔧 Build & Connectivity:
🔸 Power Button

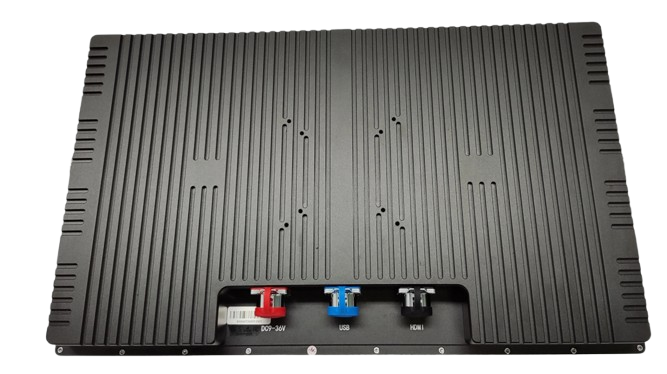

🔸 Waterproof USB, DC, and HDMI Connectors
🔸 VESA-Compatible Blind Mount
🔸 Durable Cast Aluminium Construction
🔸 IP67 Waterproof Rating
🛡️ Warranty:
✅ 1-Year Manufacturer Warranty
From offshore expeditions to commercial operations, the Titan 2 Kit delivers remote touchscreen precision for your Garmin setup—built to withstand the toughest marine conditions.
